Improved efficiency in measuring thin and small objects

Superior element recognition capabilities provide smart dimension measurement.
With a touch panel, this system allows anyone to perform easy and reliable measurement.
This is a vision measuring system developed from the expertise of numerous customers to make it ideal for the worksite.

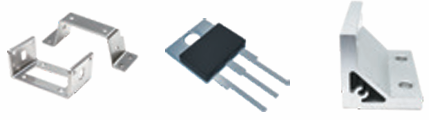

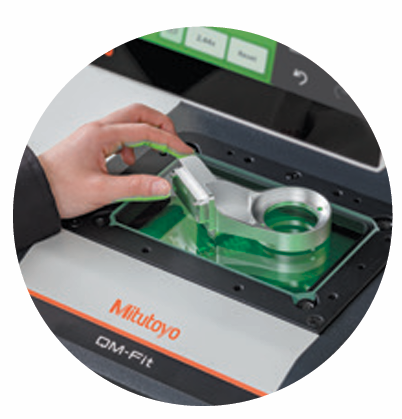

Thin and small workpieces can be measured instantly, simply by placing them on the measuring stage.

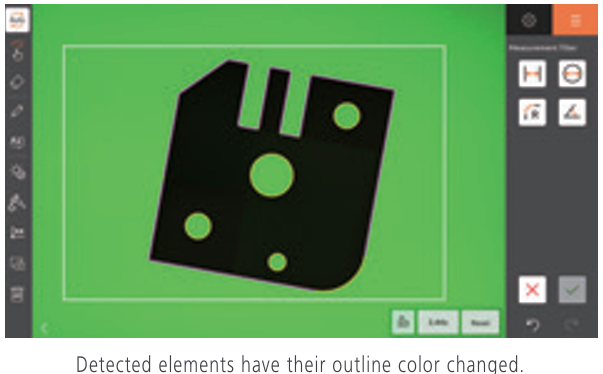

Automatic Element Detection

Detects multiple elements at once.

Automatically recognizes and detects circles, lines, and more with just one tap. Measurements can be performed quickly without the need to specify elements one by one in advance.

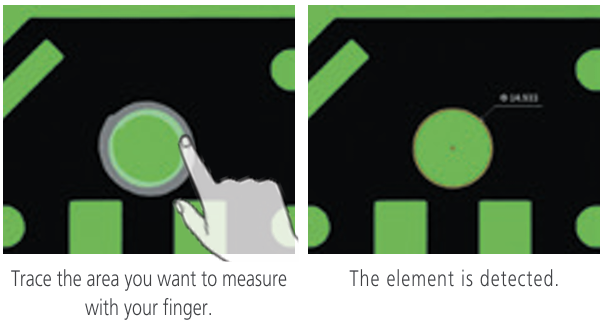

Marker Function

Simply trace the area you want to measure.

Generate elements just by roughly tracing outlines or filling them in. Effective for measuring specific points in a short time.

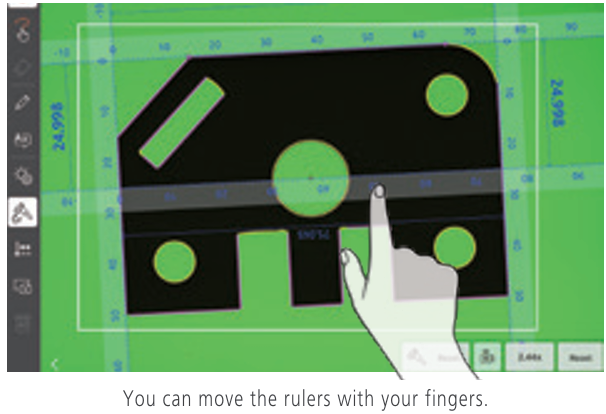

Caliper Snap

Quick measurement with adhering rulers.

The rulers automatically adhere to edges or circles when brought close to them. Unlike previous models, there is noneed to align crosshairs, reducing time and effort.

Procedure Recording

Simply place the workpiece for automatic repetition of measurement procedures.

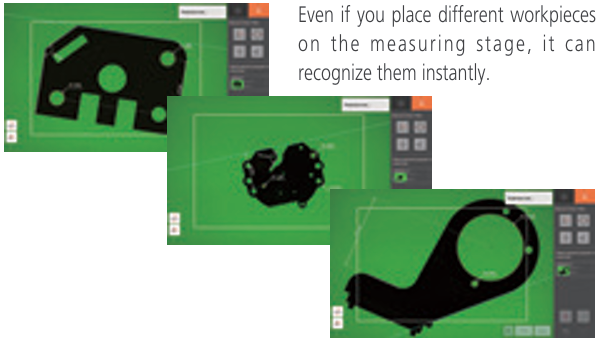

Even if workpieces are roughly placed on the measuring stage, it can quickly recognize their shape, identify the workpiece, and immediately begin measurement. Creating procedures is as easy as measuring a single workpiece.

Guide Display

No confusion from operating procedures.

The guide display function tells you what to do next, from start to finish. It provides easy operation that beginners can handle with confidence.

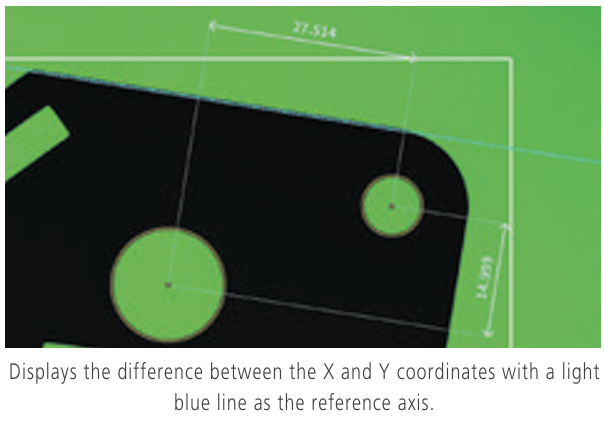

Reference Axis Setting and Coordinate Difference Measurement

No need to perform paralleling on the workpiece.

Accurate parallel alignment with projectors and other equipment, which requires some practice, is now digitally automated. Measurement preparation is completed simply by selecting the element you want to use as the reference.

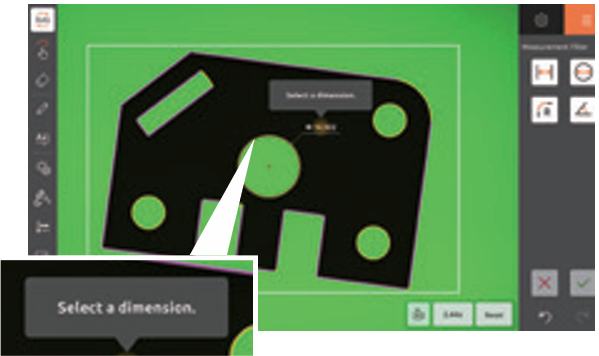

Automatic Display of Measurement Result Options

Tap to select the result you want to check.

The system automatically displays result options based on detected elements. All you have to do is tap the results you need, which significantly improves work efficiency compared to conventional measuring devices.

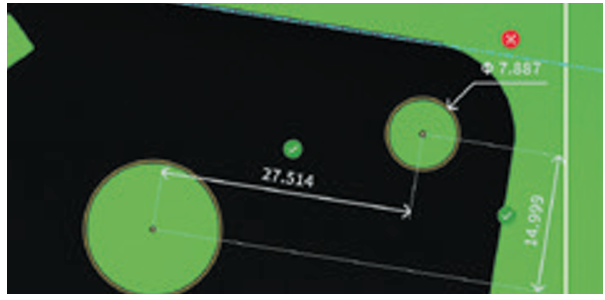

Pass/Fail Judgment

Make pass/fail checks at a glance.

By entering design values   and tolerances, the measurement results are displayed as ✓ (pass) or × (fail), allowing quick judgment at a glance.

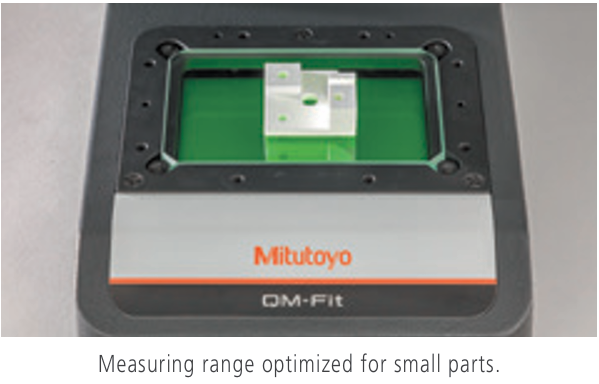

Measuring Range: 115 x 75 mm

Wide field of vision for stress-free viewing.

Despite its compact body, it covers a sufficient measuring range for small parts. One-shot measurement makes it easy to identify the measurement location.

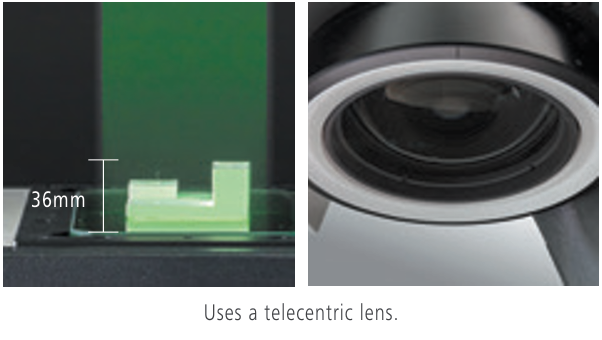

Long Focal Depth Lens

No blurring, even with high surfaces.

It clearly displays bulky parts with a height up to 36 mm and with deep depressions and rises. The extremely large depth of focus eliminates the need to adjust the focus for individual parts with different heights.

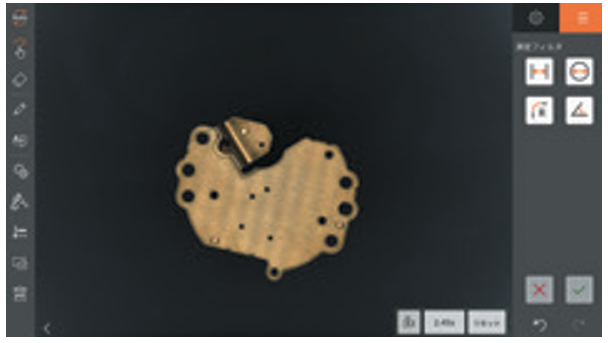

Color Camera

Check appearance with the color display.

You can check for scratches and dirt with the vivid color display. You can also save screenshots with one tap for easy comparison or review.

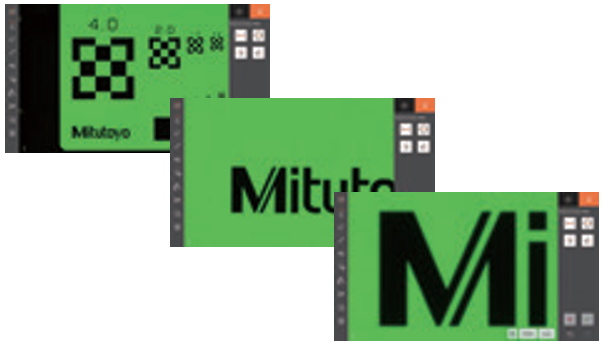

Digital Magnification

High resolution display with magnification up to 100 times.

Equipped with an ultra-high resolution 20-megapixel color CMOS camera. Enables magnified observation of minute areas and the digital system provides quick display of dimensions.
